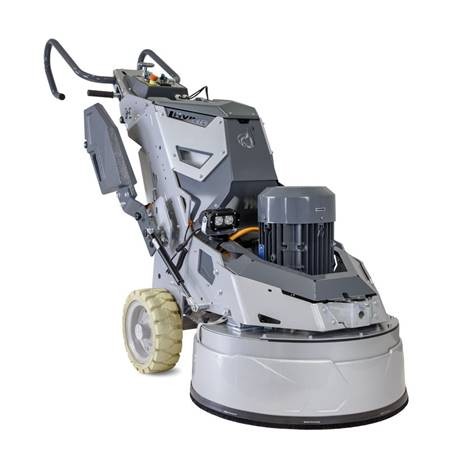

LAVINA L25S7 – Triple Head Floor Grinder

SEALED, DUST-PROOF GRINDING HEAD

• Completely redesigned chain-driven planetary drive.
• New stronger timing belt.
• Upgraded shafts, seals and bearings.
• New lighter timing pulleys for better power transmission.
• New 2-piece aluminum main belt housing with belt inspection cover for longer belt life and less maintenance.

All New Frame:

New weights for faster position change.
Redesigned frame allowing easier tool
changes.
• New handle design – faster adjustability &
more positions.
• Rubber bushing at head attachment points
for less vibrations.
• New, heavy-duty rubber tires.
• Water tank cap & new storage compartment.
• Adjustable LED lights.

Model: L25S7

• Power 10 hp / 7.5 kW

• Voltage 1 or 3 phase,(50-60 Hz) – 200-240V
• Amperage (max) – 30 Amp
• Weight of Machine 871 lbs / 395 kg
•Grinding Pressure – 329-514 lbs / 149 – 233 Kg
integrated weights w/4 pos

•Tool Holder RPM – 400 – 1100rpm

•Working Width – 26.5 in / 673mm

•Tool Holders (Left Rotation) – 3×9 in / 3x225mm

•Vacuum Hose Port – Camlock E250

•Water Feed (tank or hose connection) – Gravity Fed

•Water Tank – 5.2 gal / 20L

•Cable Length – 57ft / 17.4m

•Machine Size (L x W x H) – 84x29x46 in / 214 x 72 x 116cm
